Lighting & Electrical Coordination
Architectural Lighting Solutions for Building Projects
Coordinate decorative lighting, recessed fixtures, controls and power accessories around room schedules, reflected ceiling plans, circuit information, finish references, samples and product-specific technical documents.
Product Options
Start With the Required Product Type
Each option follows a different selection, drawing, interface and documentation path. Confirm the relevant type before releasing detailed requirements.
Feature Lighting

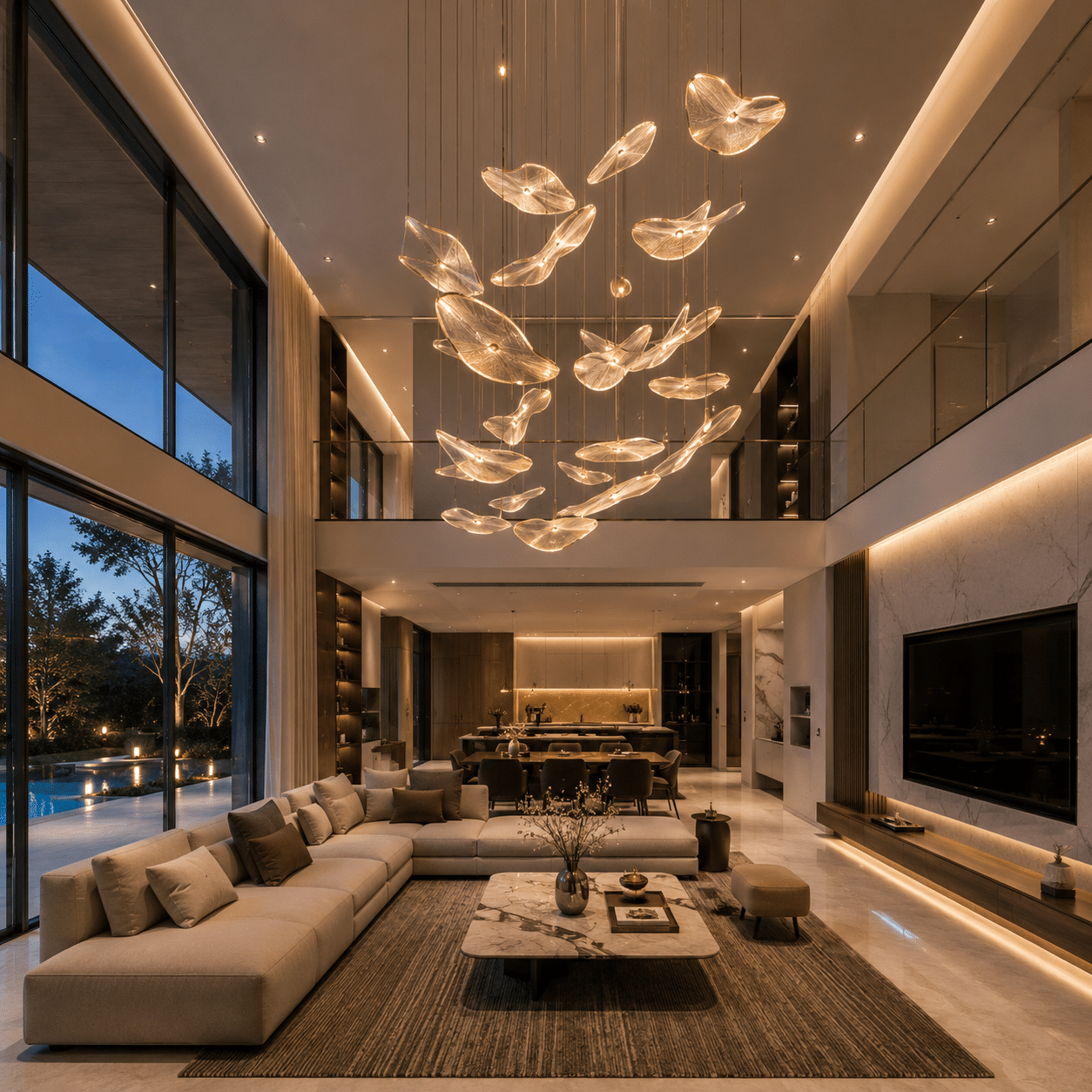

Decorative Chandeliers
Statement fixtures coordinated with room scale, mounting height, support and finish direction.
Explore product →
Recessed Lighting

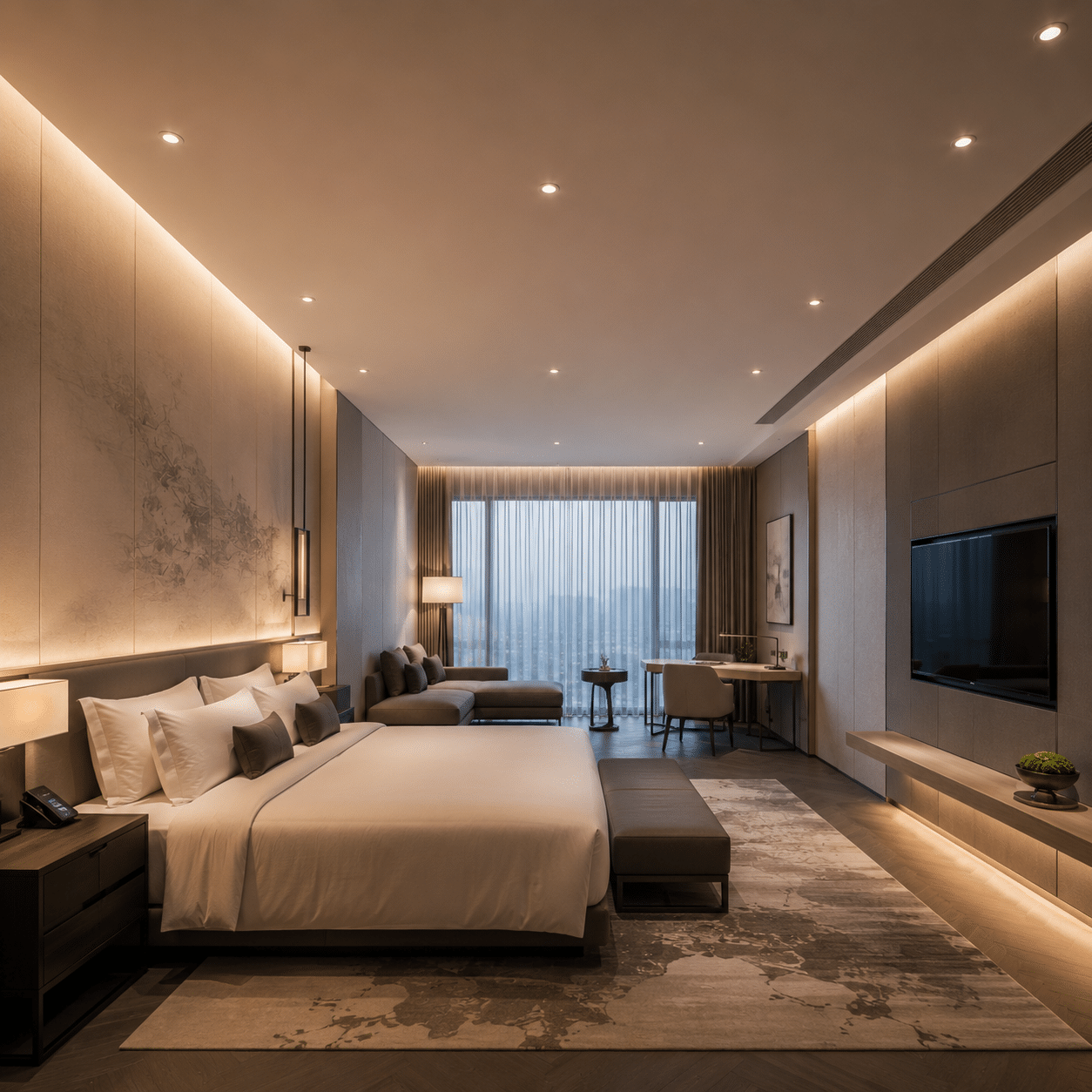

LED Downlights
Fixed, adjustable and other recessed formats organized by ceiling zone and lighting intent.
Explore product →
Lighting Control

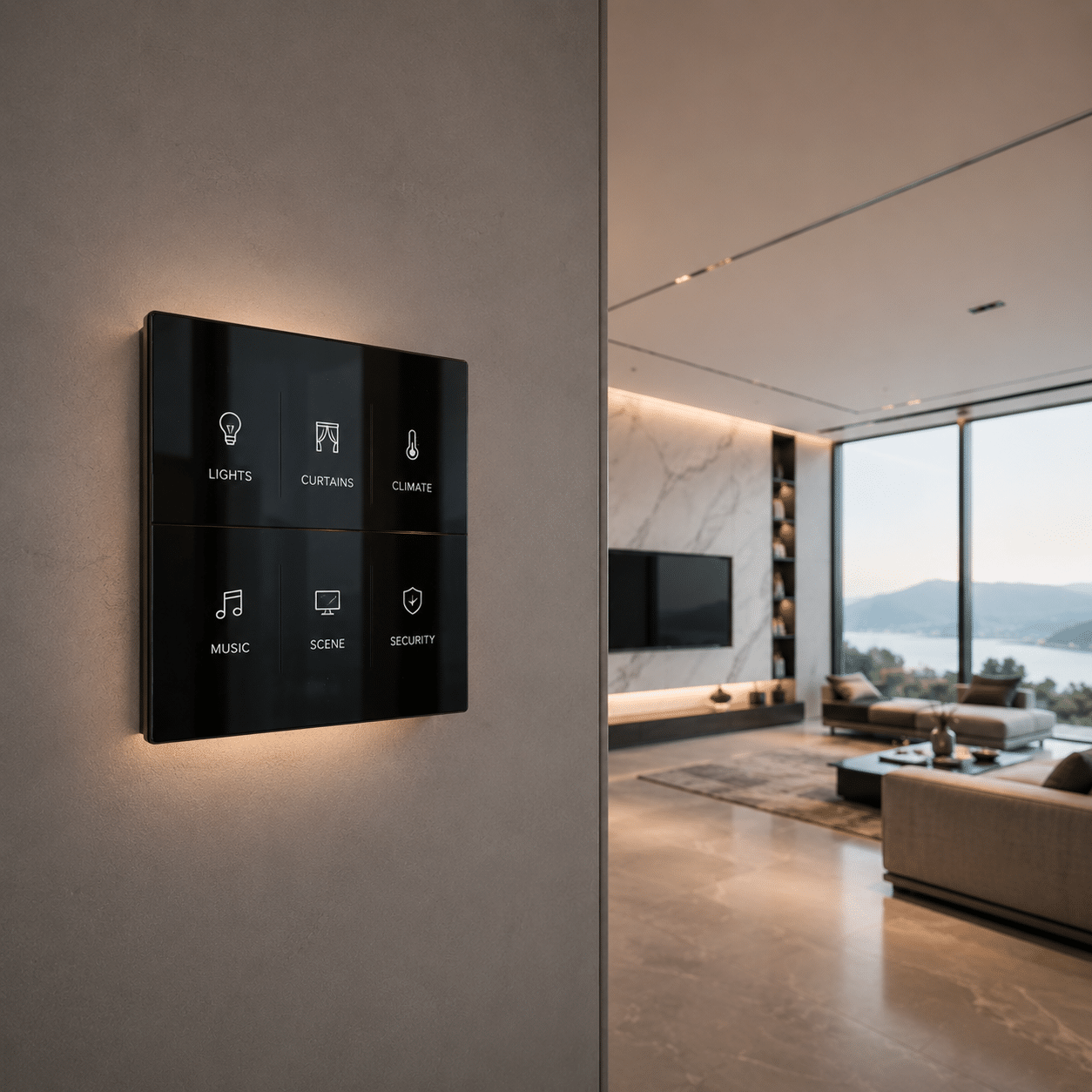

Smart Switches
Wall controls coordinated with circuits, gang layouts, protocol requirements and approved finishes.
Explore product →
Power Access

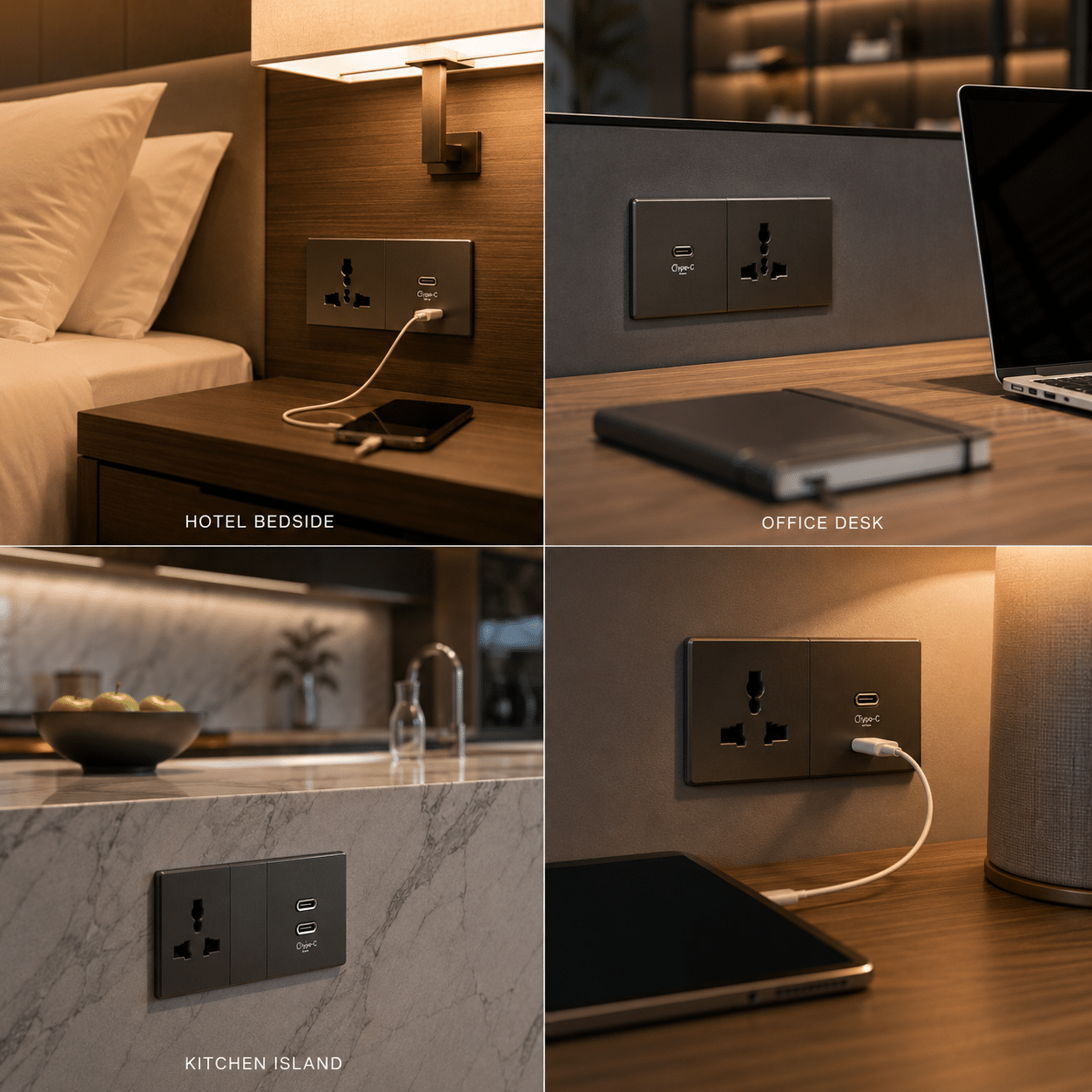

Power Sockets
Socket modules reviewed against project country, outlet type, services and installation boxes.
Explore product →Project Inputs
Build One Coordinated Lighting and Electrical Schedule
A clear schedule connects every selection to its location, quantity, drawing reference and approval status.
Room & Zone
Record room references, fixture groups and lighting intent.
Fixture Reference
List type, quantity, mounting and finish for each selected fixture.
Control Requirement
Identify circuits, dimming, control protocol and scene requirements where applicable.
Approval Status
Track samples, datasheets, drawings, comments and released models.
Technical Coordination
Connect Fixture Selection to the Ceiling and Electrical Design
Lighting products should be reviewed as part of the reflected ceiling, electrical and interior finish information rather than as isolated catalogue items.
- Fixture dimensions and ceiling cut-out or suspension details
- Driver, transformer and access requirements
- Circuit, dimming and control compatibility
- Finish sample and visible trim coordination
- Maintenance access and replacement information
Approval Boundaries
Treat Performance as Model-Specific Information
Output, color quality, flicker behavior, ingress protection, dimming and compliance vary by exact fixture and driver combination. Confirm them from applicable documents for the selected model.
Photometric Data
Review available lumen, distribution and photometric files for the selected fixture.
Electrical Data
Confirm voltage, wattage, driver and dimming information against the project.
Environmental Use
Match indoor, wet-area or exterior use to the exact product documentation.
Control Interface
Confirm protocol, wiring and accessory compatibility before release.
Finish Approval
Approve Visible Finishes and Light Appearance Together
A finish chip alone does not show the complete installed effect. Review the fixture sample, trim, diffuser, color appearance and surrounding material conditions as one decision.
- Fixture body, trim and visible accessory finishes
- Color-temperature reference for the selected fixture
- Diffuser, reflector and glare-control component
- Ceiling, wall or joinery interface sample
- Approved room and product reference
Project Records
Match Every Document to the Selected Fixture or Device
Documents should identify the exact proposed product, configuration, revision and applicable project area.
Product Datasheet
Model code, dimensions, electrical data and available options.
Lighting & Control Files
Photometric, wiring, dimming or control information when available.
Installation Information
Mounting, access, driver location and product-specific instructions.
Coordination Workflow
From Project Scope to Coordinated Delivery
Each stage should remain connected to the approved schedule, sample, drawing and product references.
Review Scope
Organize drawings, schedules, quantities, requirements and missing information.
Compare Options
Review suitable product families, configurations, finishes and commercial scope.
Coordinate Samples
Track physical samples, model references, comments and approved alternatives.
Resolve Details
Connect dimensions, interfaces, services and supporting information.
Follow Production
Keep production and inspection records connected to approved references.
Pack & Coordinate
Identify packages and align handling, loading and delivery information.
Inspection References
Check the Agreed Scope Before Packing
Inspection points should be defined for the selected product and linked to the current schedule, sample and drawing references.
Identity & Quantity
Confirm item code, selected model or material reference and scheduled quantity.
Dimensions & Configuration
Check agreed dimensions, arrangement, accessories and interface points.
Visible Appearance
Review finish, color, pattern or visible components against approved references.
Labels & Packing
Connect package and component labels to inspection and delivery records.
Frequently Asked Questions
Architectural Lighting Solutions for Building Projects FAQ
Final products, standards, test requirements and service scope should be confirmed for the selected model, configuration and application.
What information is needed to quote lighting products?
Can lighting products be customized?
How are samples approved?
Can certifications or test reports be provided?
How are technical interfaces coordinated?
What is checked before packing?
Can several product categories be consolidated?
What should be confirmed before installation?
Start the Review
Send Your Lighting Schedule and Ceiling Plans
Share the available drawings, schedules, quantities, reference images, technical requirements and project location. The information can be reviewed before the next quotation step.
