Architectural Staircases
Architectural Staircase Systems for Building Projects
Coordinate staircase geometry, supporting construction, treads, risers, balustrades, handrails, finishes and lighting from the architectural drawings through approval, packing and site installation.
Staircase Types
Start With the Layout and Supporting Concept
The stair form affects geometry, structure, balustrade interfaces, fabrication, transport and installation. Final design must follow the project architect, structural engineer and applicable local requirements.

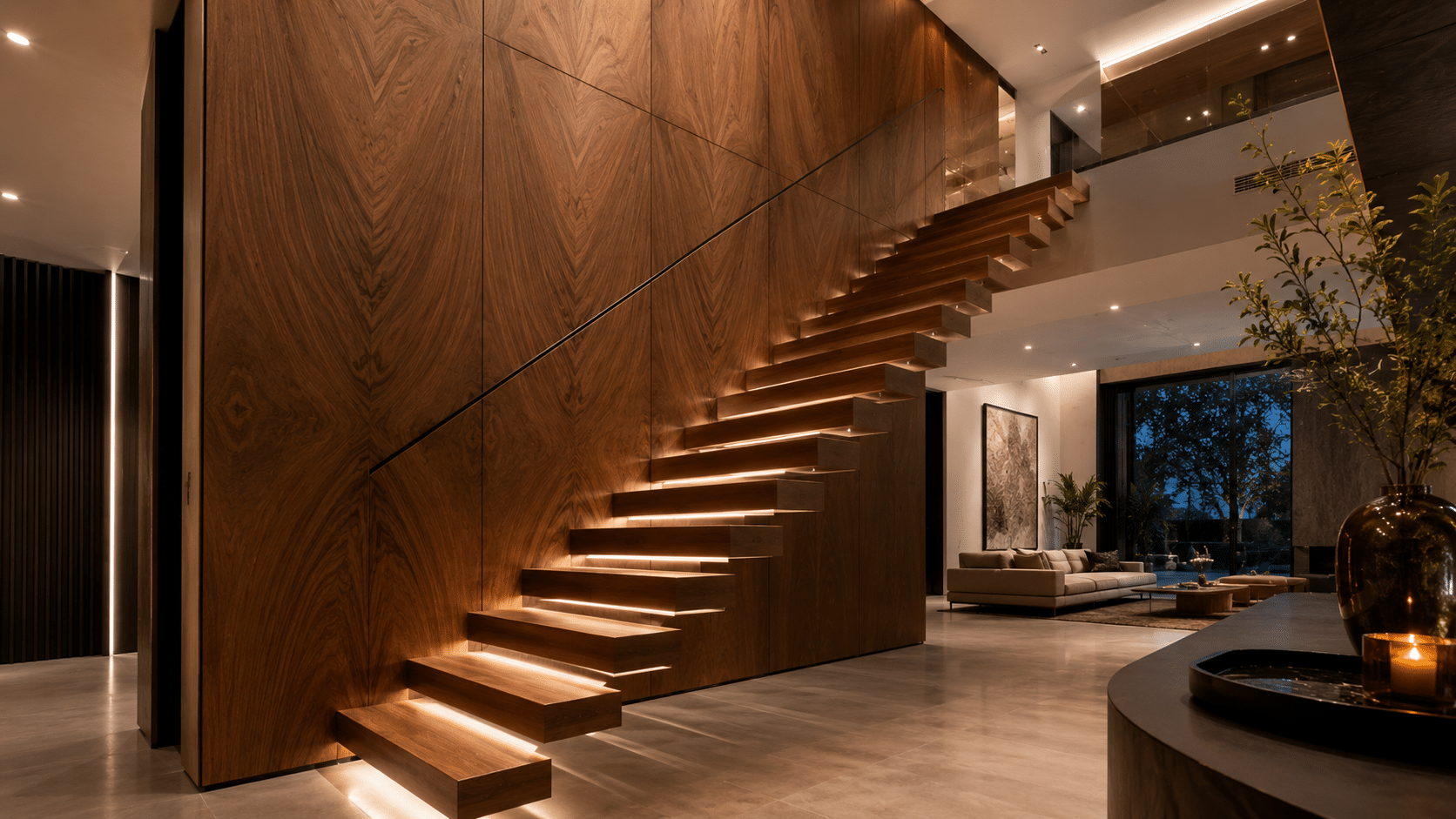

Floating Layout

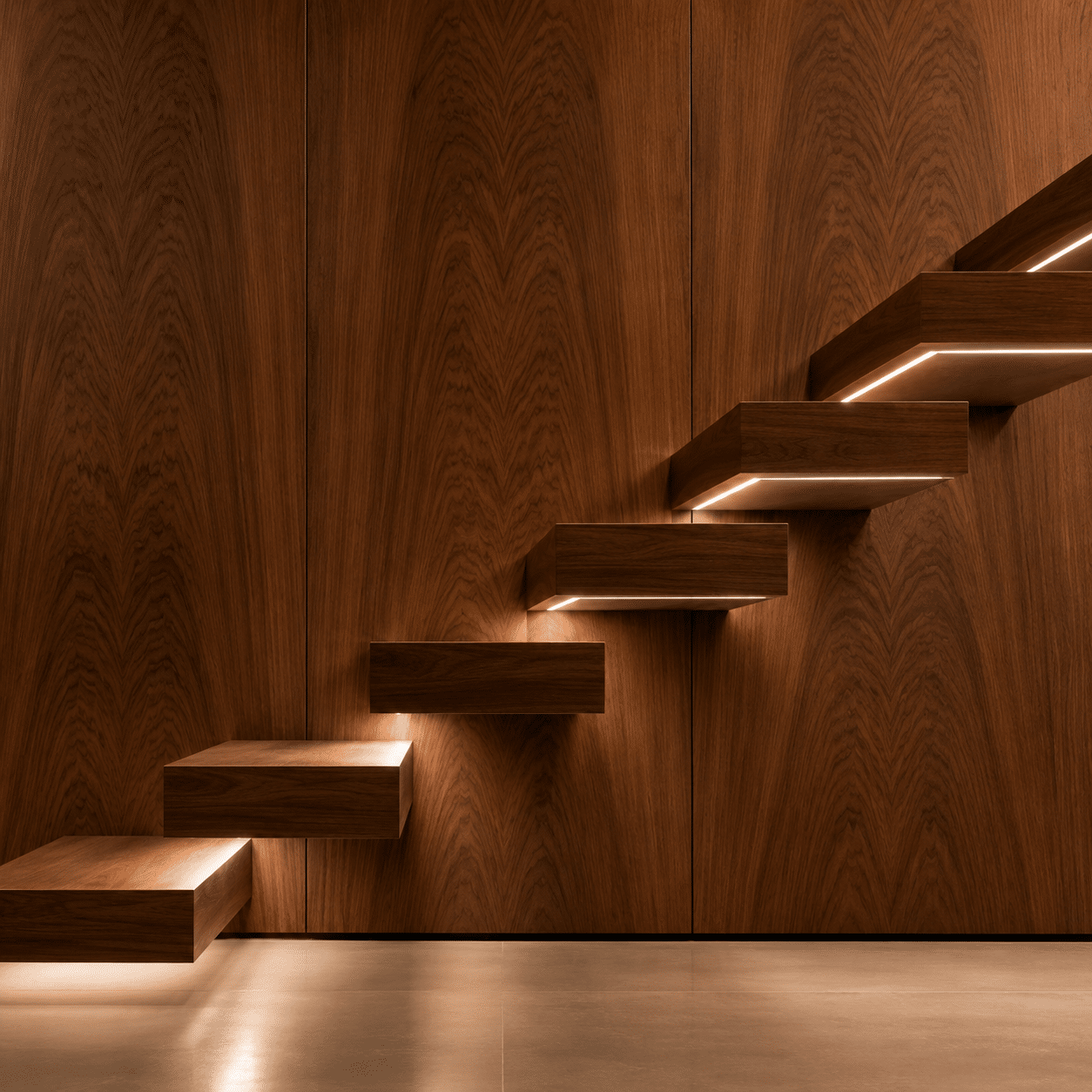

Cantilevered Staircases
Review wall or frame support, tread build-up, anchoring zones, deflection criteria, balustrade fixing and access for installation.
Curved Geometry

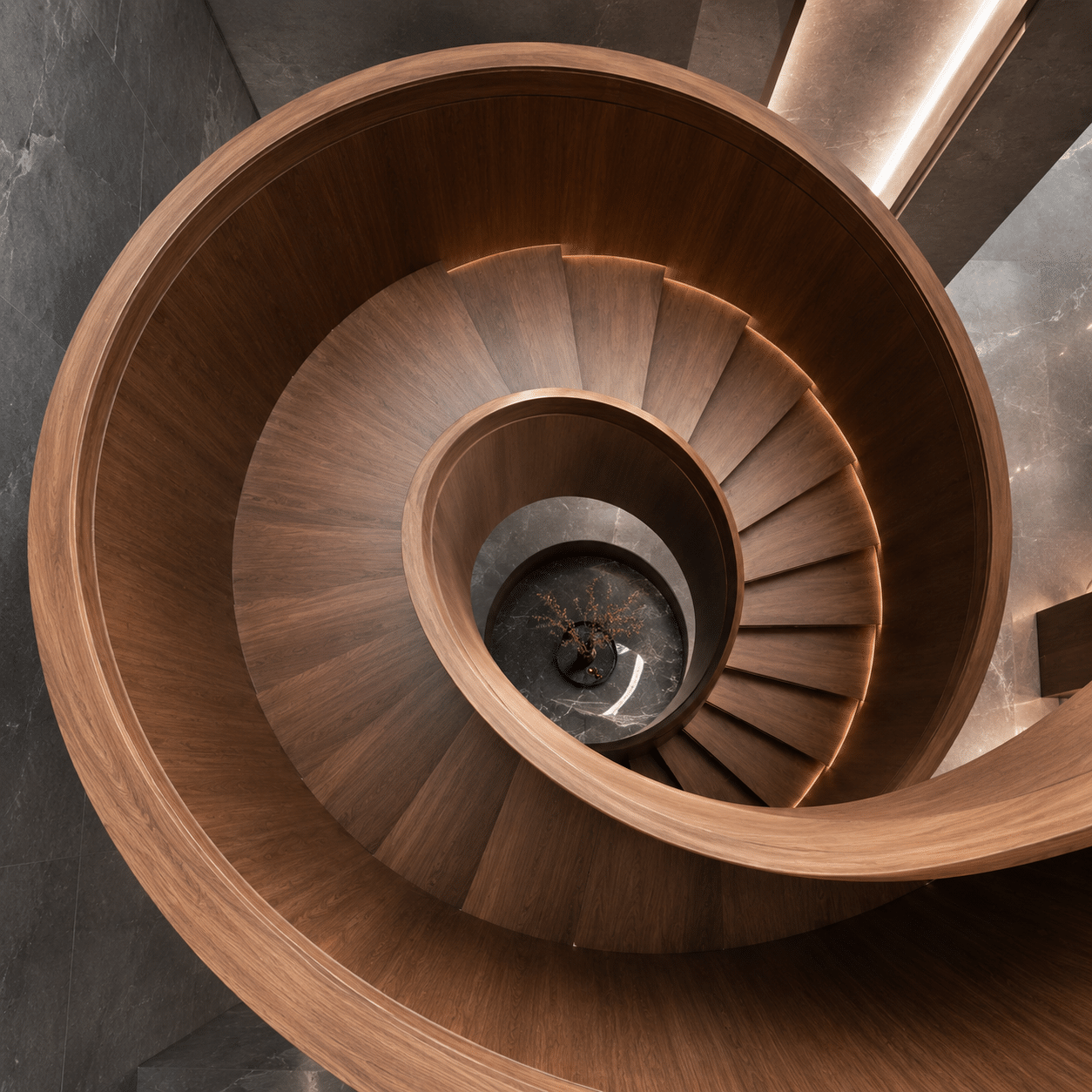

Helical & Curved Staircases
Coordinate centreline geometry, floor openings, radii, landings, curved stringers, handrails, templates and transport sections.
Open-Riser System

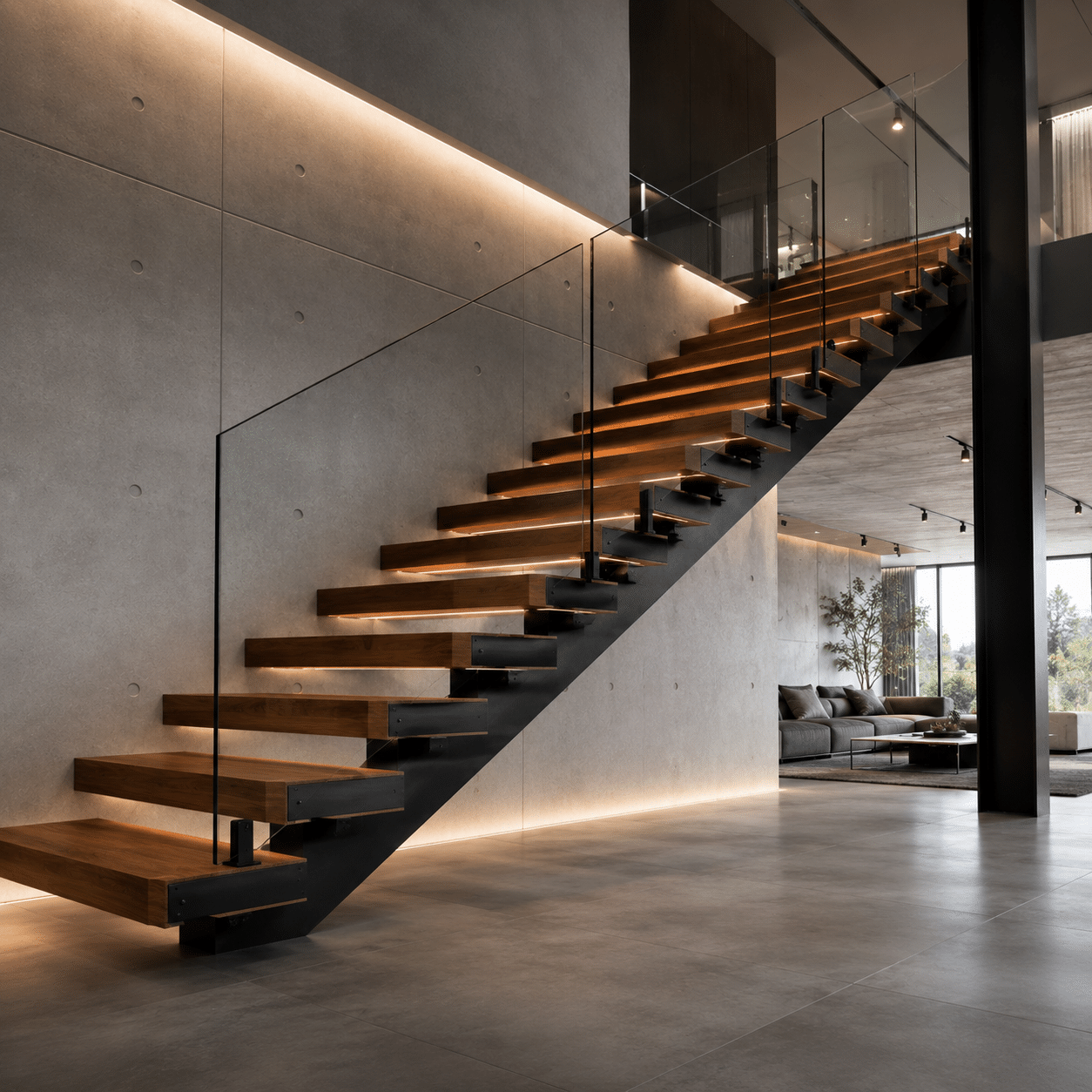

Mono & Double-Stringer Stairs
Review stringer arrangement, tread supports, connections, floor interfaces, visible steel finish and guard fixing details.
Design Inputs
Confirm the Stair Geometry Before Product Selection
A reviewable staircase brief should connect architectural dimensions, local requirements, structural conditions and finish expectations.
Plans, Sections & Levels
Provide floor-to-floor height, stair opening, landings, surrounding walls, floor build-up and reference levels.
Rise, Going & Headroom
Record the project design criteria for risers, treads, clear width, headroom, nosings and landing dimensions.
Guarding & Handrails
Define guard height, opening limits, handrail position, glass or infill type and fixing interfaces.
Use & Local Requirements
Clarify occupancy, interior or exterior use, circulation expectations and the codes specified by the project team.
Structural Coordination
Match the Stair System to the Supporting Building Structure
Support locations, connections, loads and movement criteria must be reviewed by the project's qualified structural professional. Product drawings should clearly show the information required for coordination.
- Concrete, steel, masonry or framed support conditions
- Floor-edge, landing, wall and stringer connection zones
- Design loads, movement and deflection criteria from the project engineer
- Anchor locations, embedded items and access for fixing
- Interfaces with finishes, waterproofing and fire-rated construction
- Survey information and required site verification
Materials & Interfaces
Coordinate Structure, Treads, Balustrades and Lighting
Visible materials and concealed components should be reviewed as one assembly so junctions, finishes and installation access remain aligned.
Stringers & Supports
Define visible or concealed steelwork, support configuration, connection covers and the required finish.
Treads & Risers
Coordinate material construction, thickness, nosing, slip-related requirements, grain direction and finish samples.
Balustrades & Handrails
Review posts, glass or other infill, handrail profiles, fixing locations, edge distances and finish references.
Lighting & Services
Identify lighting channels, drivers, cabling routes, access panels and interfaces with surrounding ceilings and walls.
Drawings & Approval
Keep Geometry and Interfaces Under Revision Control
Every drawing and sample should identify its revision, comments, approval status and relationship to the latest architectural and structural information.
Input Review
Organize plans, sections, levels, surveys, structural criteria and finish references.
Geometry Drawings
Document stair runs, landings, curves, openings, clearances and component references.
Interface Details
Show supports, connections, floor edges, walls, guards, lighting and surrounding finishes.
Material Samples
Record timber, metal, glass, coating and other visible finish references for review.
Project Approval
Track comments and approval by the responsible architect, engineer and project stakeholders.
Production Release
Release only the approved geometry, interfaces, materials and documented project requirements.
Production References
Check Components Against the Approved Stair Package
Inspection scope should be agreed before production and matched to the relevant component, drawing revision, material sample and acceptance criteria.
Geometry & References
Check component marks, dimensions and mating references against approved drawings and available survey information.
Materials & Finishes
Compare visible timber, metal, glass and coating references with approved samples or documented selections.
Trial Assembly Where Required
For selected designs, define whether partial or full trial assembly is required and record the agreed inspection scope before packing.
Delivery & Site Readiness
Plan Transport Sections, Labels and Installation Access
Large or curved components may require defined transport sections, lifting routes and installation sequences. Packaging and labels should remain connected to the approved stair and component references.
- Component marks and corresponding packing-list references
- Transport sections, lifting points and handling limitations
- Protection for visible timber, metal, glass and finished edges
- Site access, storage conditions and installation sequence
- Confirmed supports, openings, levels and fixing zones
- Installation drawings, accessory lists and handover records
Related Resources
Connect the Staircase to the Wider Interior Package
Use these pages to coordinate timber finishes, cabinetry, project responsibilities and published project contexts.
Parent Category
Bespoke Millwork & Cabinetry
Coordinate stair finishes with cabinetry, wall panels, flooring and furniture.
Explore Millwork →Design Workflow
Building Materials for Architects
Review the drawing, sample, specification and interface coordination workflow.
View Architect Solution →Published Cases
Global Building Projects
Review approved project locations, project types and published material scopes.
View Project Cases →Frequently Asked Questions
Planning an Architectural Staircase Package
These answers describe the coordination process. Structural design, code compliance and product performance must be confirmed for the specific project by the responsible qualified professionals.
Which architectural staircase types can be reviewed?
What information is needed for an initial staircase quotation?
Who confirms the structural design and load criteria?
How are rise, tread depth, headroom and guards confirmed?
Can timber, metal, glass and lighting be coordinated together?
Is factory trial assembly included for every staircase?
Do all staircase systems have the same load rating or certification?
How are staircase components organized for delivery?
Start the Review
Send Your Stair Plans, Sections and Finish References
Share the available stair geometry, floor openings, levels, support information, balustrade preferences and material references. Missing coordination items can be identified before the next quotation step.
